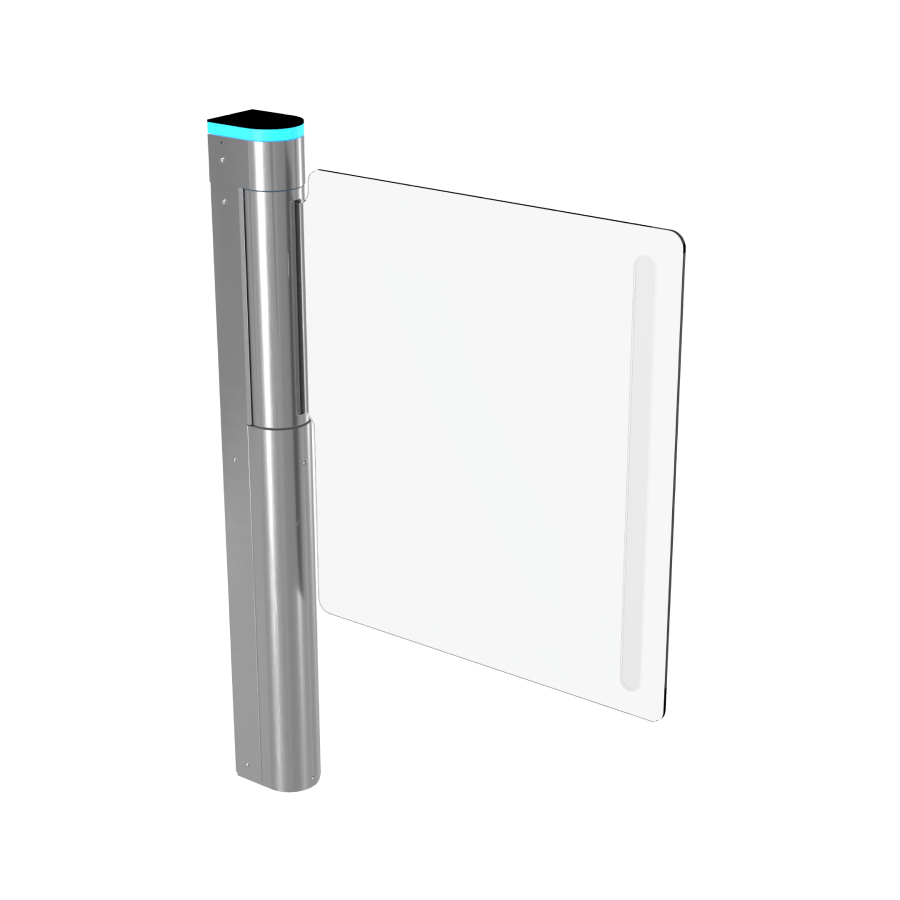

XGate-GS are advanced automatic swing gates equipped with innovative BMDrive® servo-drive (BLDC) motors. This technology ensures the accuracy and stability of the movement, reducing the energy consumption. XGate-GS can rotate both clockwise and counter-clockwise by 90°, making them versatile and adaptable to a variety of applications. The ToothLock® locking system ensures that the gate leaf is securely held in the open or closed position, guaranteeing safety and stability. One of the key features of this model is the possibility of manually opening the gate leaf in the case of a power failure (fail-safe), which ensures reliability and safety in emergency situations.
|
Model
|
XGATE-GS |
|
Passage width, mm
|
650-900 |
| Housing width, mm | 91 |
| Housing length, mm | 118 |
| Housing height, mm | 1006 |
| Opening\closing time, sec | 2.5 – 3.5 |
| Barrier type | glass leaf |
| Mechanism | BMDrive® servo-driven (BLDC) |
| Blocking system | ToothLock |
| Mean time to failure, cycles | MCBF 10 000 000 |
| Standard housing | Brushed SS AISI 316
Brushed SS AISI 304 Brushed SS AISI 316 Powder coated RAL |
| Top cover | solid glass |
| Voltage | from the AC (100–240) V, 50/60 Hz; from a DC source 12 V. |
| Maximum power consumption, W | 60 |
